Drilling Rigs with H-kinematics

This equipment series is characterized by

  • short loading times
  • easy setup on site thanks to compact design
  • fast relocation to a new operating position on sites with underpasses or low bridges

Drilling rigs with H-kinematics at a glance

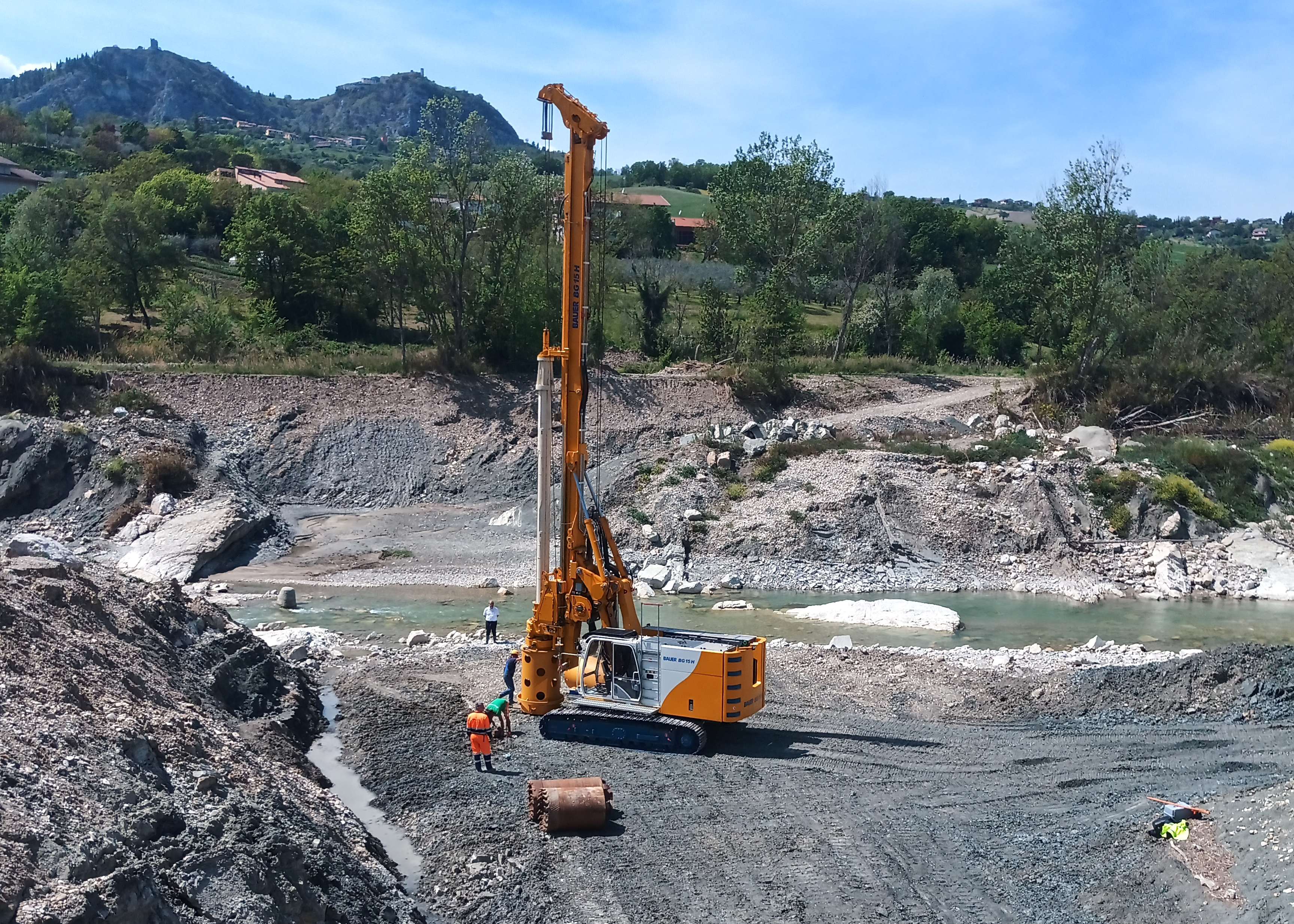

Drilling Rig BG 15 H BT 50

Technical details

Icon Drehmoment
Max. torque (150 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (44.0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (1,500 mm)
to the Product
Drilling Rig BG 15 H BT 50

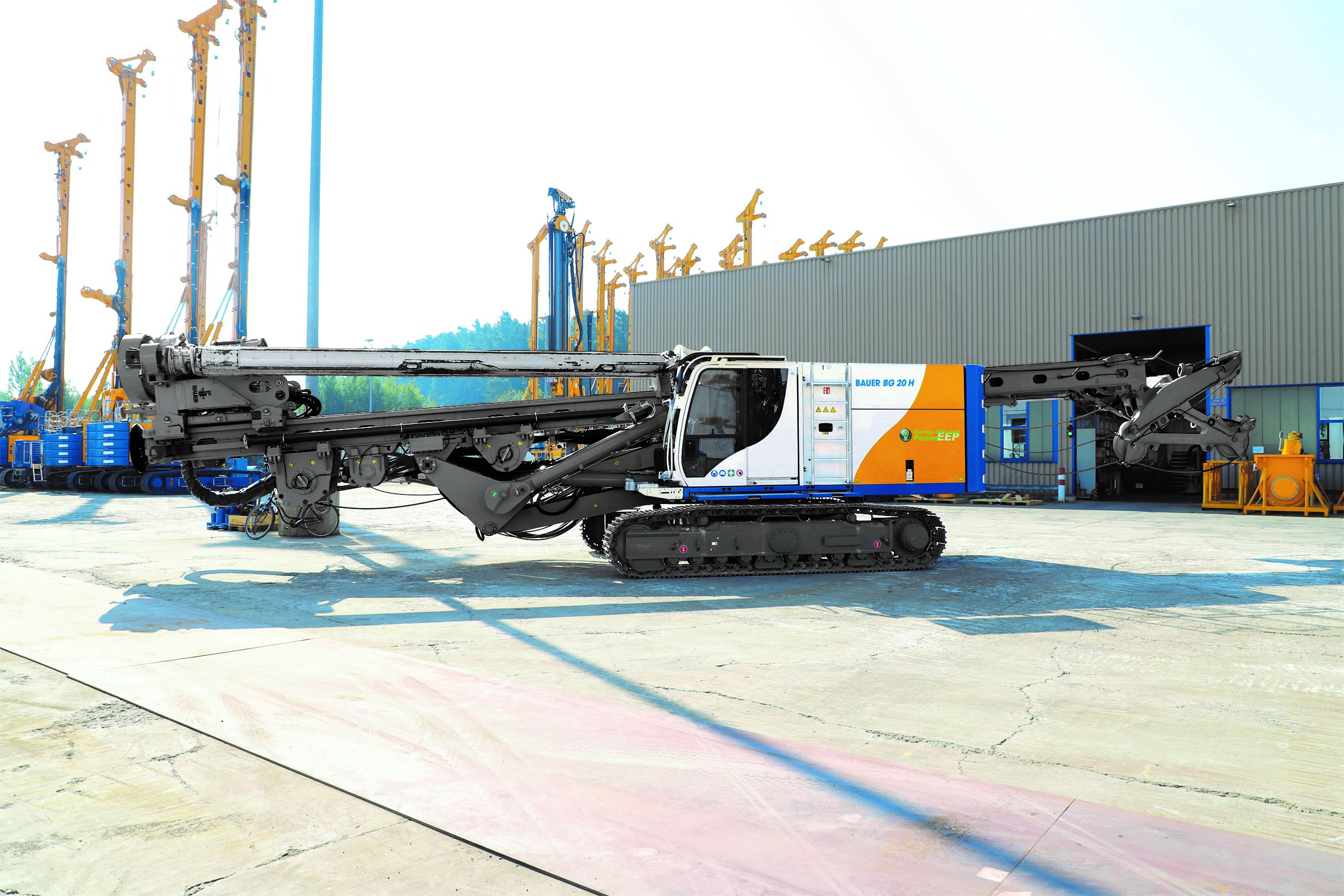

Drilling Rig BG 20 H BT 50

Technical details

Icon Drehmoment
Max. torque (204 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (40.0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (1,300 mm)
to the Product
Drilling Rig BG 20 H BT 50
Drilling Rig BG 23 H BT 65

Technical details

Icon Drehmoment
Max. torque (235 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (UW 50 / UW 60) (31.0 / 53.7 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (1,500 mm)
to the Product
Drilling Rig BG 23 H BT 65

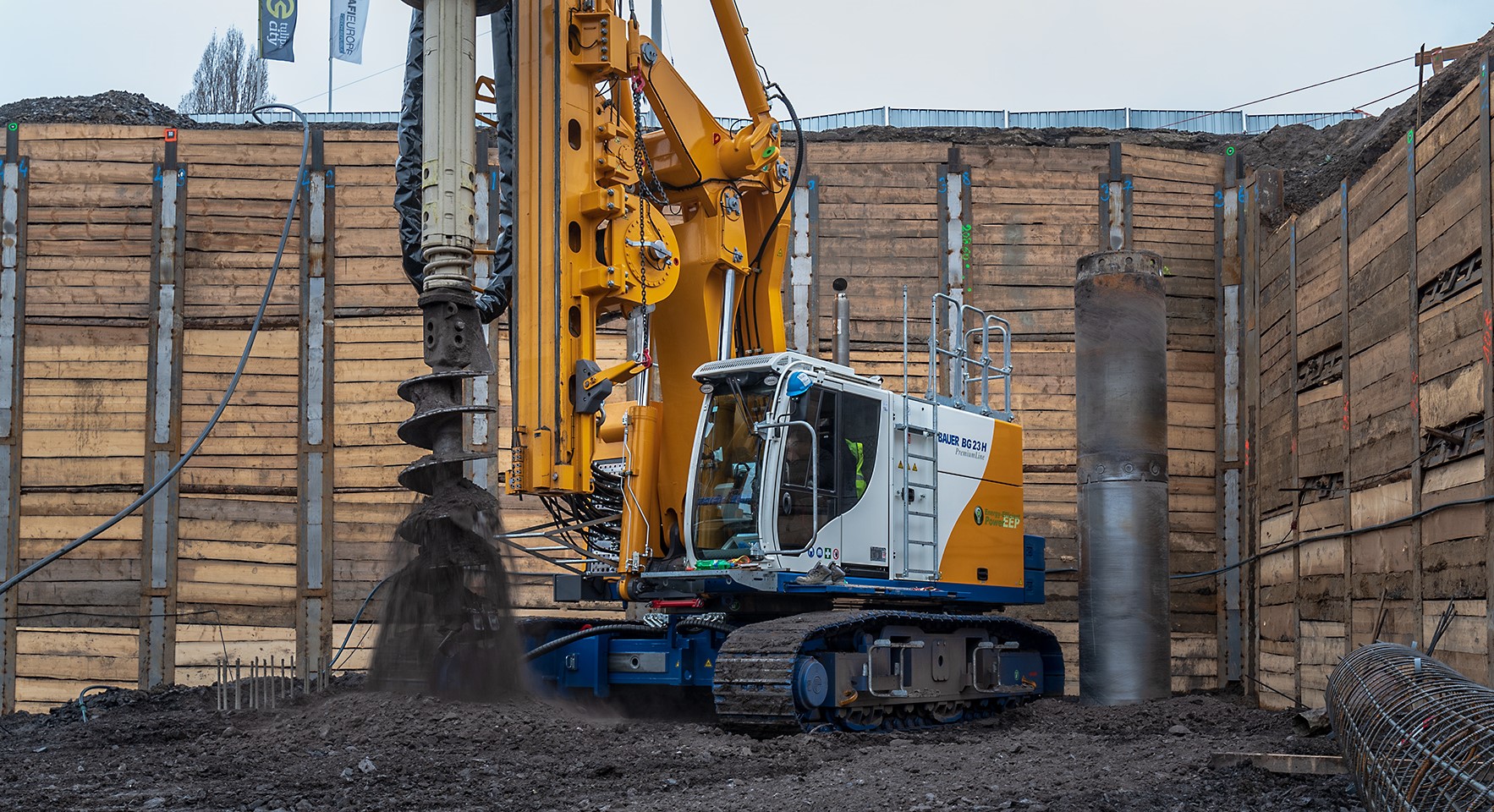

Drilling Rig BG 23 H BT 75

Technical details

Icon Drehmoment
Max. torque (235 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (53.2 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (1,500 mm)
to the Product
Drilling Rig BG 23 H BT 75

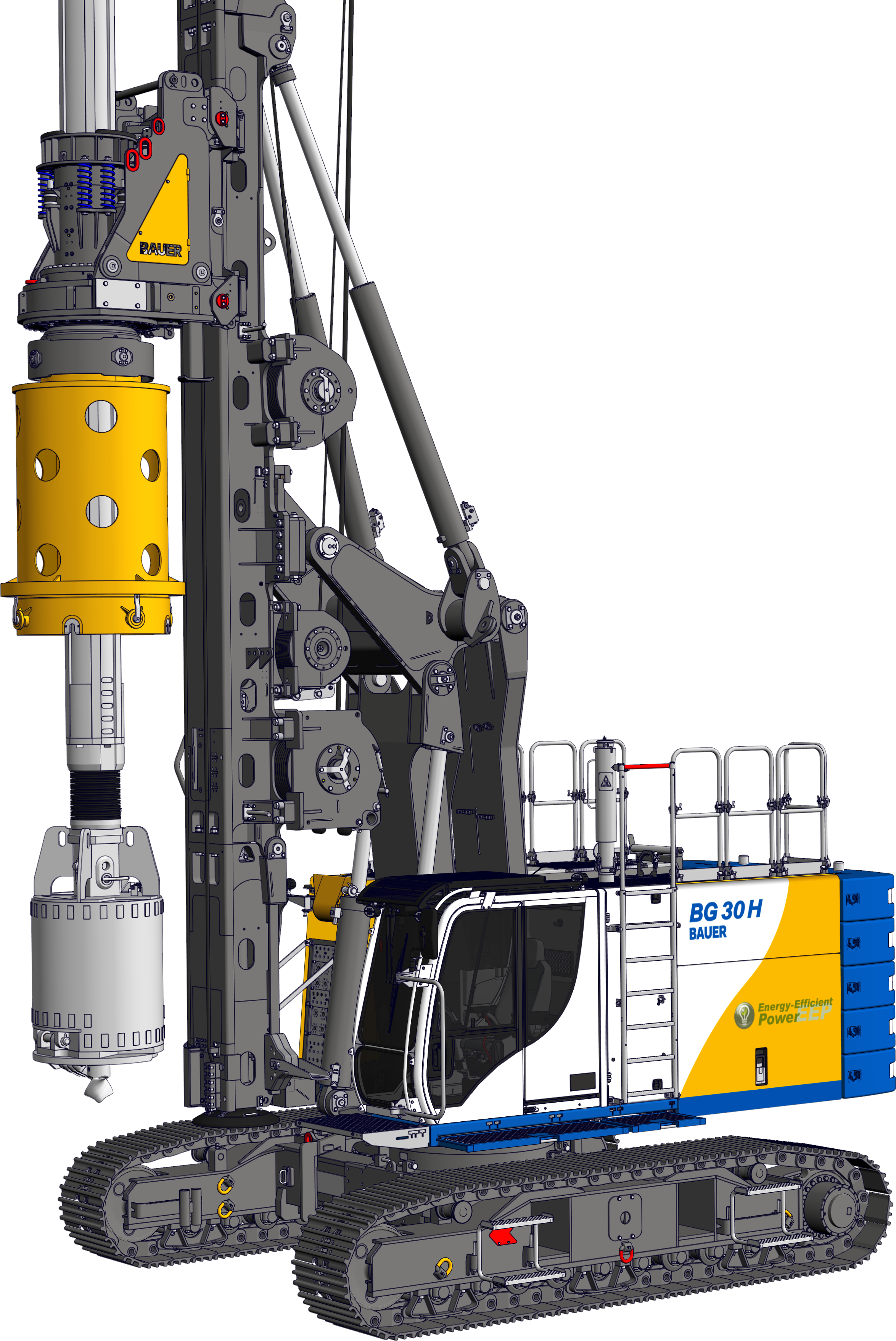

Drilling Rig BG 30 H BT 75

Technical details

Icon Drehmoment
Max. torque (300 kN m)
Icon Bohrtiefe
Max. drilling depth Kelly (65.7 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig BG 30 H BT 75
Drilling Rig BG 30 H BT 85

Technical details

Icon Drehmoment
Max. torque (300 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (65.7 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig BG 30 H BT 85

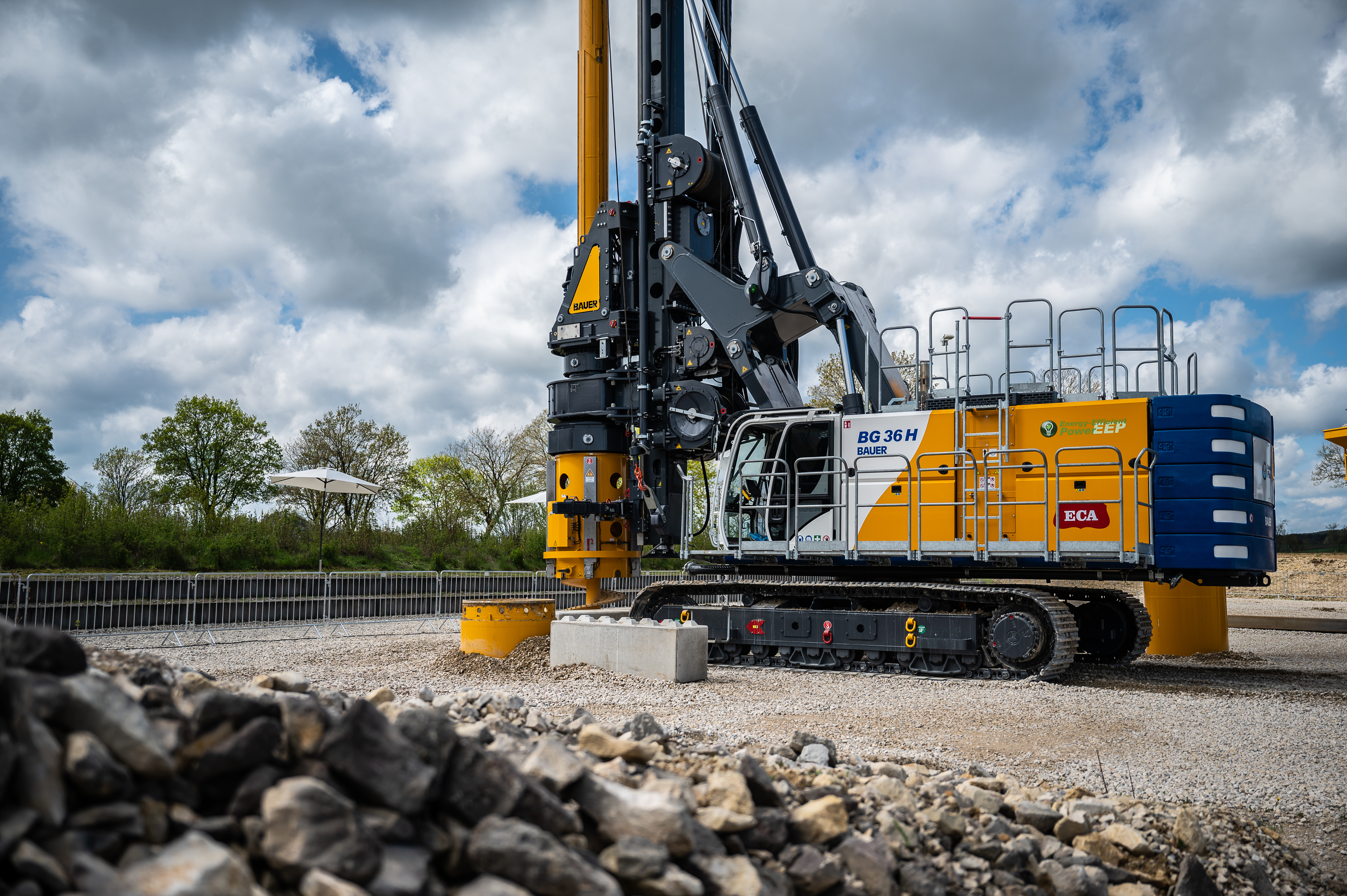

Drilling Rig BG 36 H BS 95

Technical details

Icon Drehmoment
Max. torque (385 kNm)
Icon Bohrtiefe
Max. drilling depth Kelly (68,0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig BG 36 H BS 95
Drilling Rig BG 36 H BT 85

Technical details

Icon Drehmoment
Max. torque (385 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (68.0 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig BG 36 H BT 85

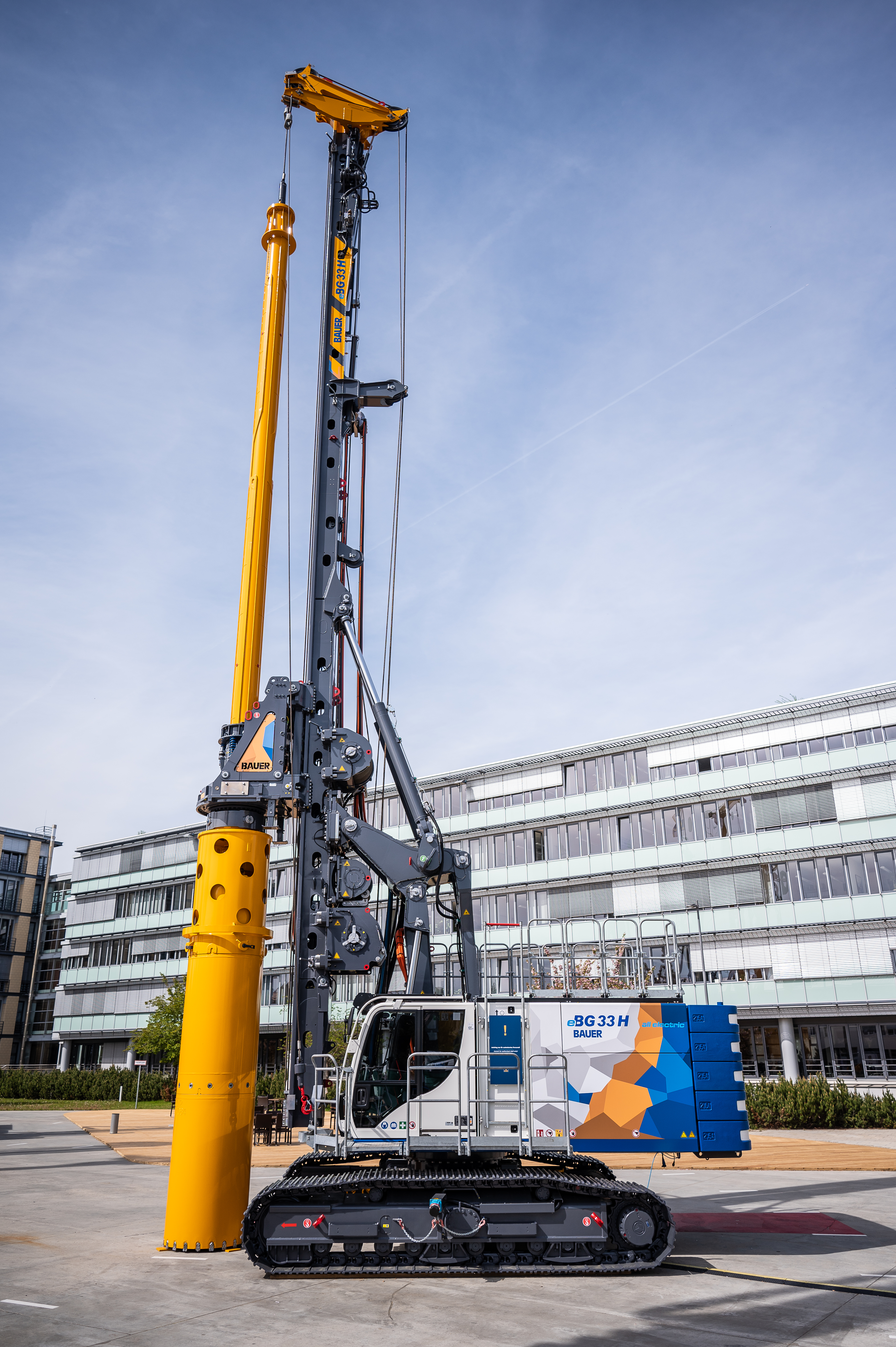

Drilling Rig eBG 33 H all electric

Technical details

Icon Drehmoment
Max. torque (300 kN.m)
Icon Bohrtiefe
Max. drilling depth Kelly (68.6 m)
Schlitzbreite
Max. drilling diameter Kelly uncased (2,500 mm)
to the Product
Drilling Rig eBG 33 H all electric

Accessory

BAUER Maschinen Assistance Systems

BAUER Maschinen Assistance Systems

More safety, efficiency, and performance on the jobsite: BAUER assistance systems support operators in complex work processes, optimize workflows, and help protect personnel, machinery, and drilling tools. The result is consistently high productivity and maximum ease of operation.

Discover the full potential of your new BAUER machine!

Explore our Assistance Systems
